Lab1st wiped film evaporator molecular distillation dzl

  • 1 - 2 Pieces
    $39,900.00
  • 3 - 4 Pieces
    $29,900.00
  • >=5 Pieces
    $21,900.00
Application:
Distillation
Model Number:
GMD-150 GMD-200 GMD-80
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized packaging (Min. Order: 3 Pieces)
Graphic customization (Min. Order: 3 Pieces)

More

Customized logo (Min. Order: 3 Pieces) Less
Samples:
$29,900.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
evapotator
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
United States
Showroom Location:
United States
Condition:
New
Power Source:
Electric
Process:
Vacuum Distillation
Place of Origin:
Shanghai, China
Brand Name:
Lab1st
Voltage:
220V/50HZ
Power(W):
150W
Dimension(L*W*H):
1100*500*1750
Weight:
220kg
Certification:
CE
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts
Key Selling Points:
Automatic
Material:
Borosilicate 3.3 glass
Application:
distillation
Motor power:
150w
Power source:
electricity
Used for:
hemp oil distillation
Recycle receiving flask:
5L
Distillate receiving flask:
5L
Operation Temperature:
Up to 200℃
Product Certification certification
CE Certified.
Valid from 2018-08-21 until 2023-08-20
Supply Ability
Supply Ability:
300 Piece/Pieces per Month High precision wiped film evaporator molecular distillation
Packaging & Delivery
Packaging Details
Carefully packed in wooden case.
can do customized package
Port
Shanghai
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description
Product Description

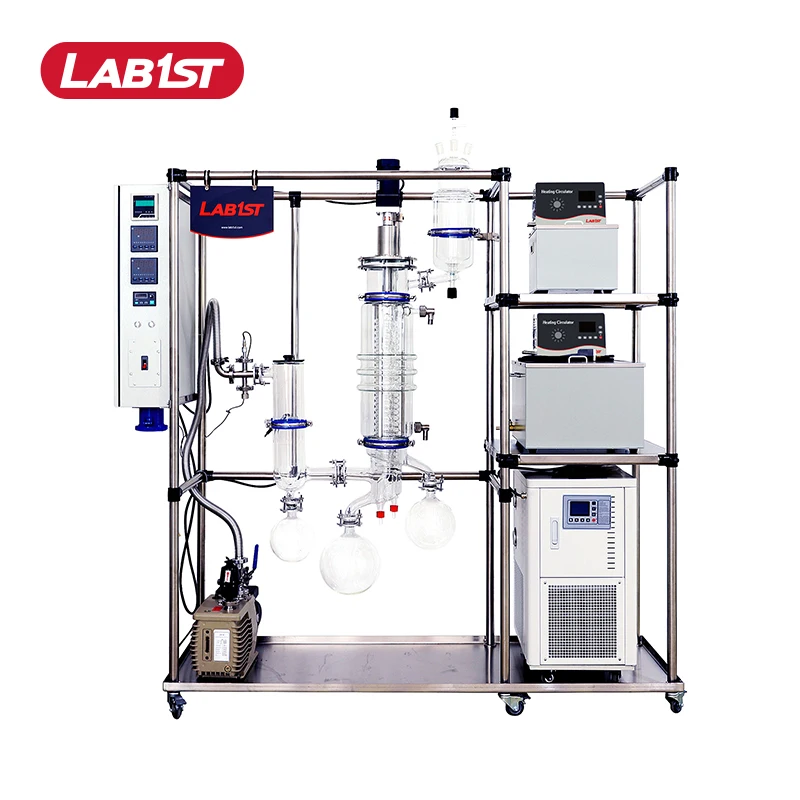

Lab1st wiped film evaporator molecular distillation unit


LAB1ST Scientific is now offering turnkey packages for wiped film molecular distillation units, including the evaporator, vacuum pump, heaters, chillers and necessary feeding/receiving equipments. The wiped film molecular distillation unit is superior than traditional short path distillation kit by shorter residence time, lower separation temperature, capability of continuous and unattended operation. The units are available in various sizes (from 80mm diameter to 200mm or more), with processing speed of 18kg/h.

Glass Type C
Evaporator Unit: with dewar-style cold trap
Main Heater: up to 300
Pre-heater: up to 300℃
Heater/Chiller for Internal Condenser: -25 to 180
Rotary Vane Pump: 6L/s gas displacement
Additional Terpene Condenser
Chiller for Terpene Condenser: down to -20
Peristaltic Pump Module: for continuous inlet
Glass Valve Module: for Continuous Outlet Diffusion Pump Chiller for Cold Trap: down to -80
Working principle

Molecular distillation is a special liquid-liquid separation technology, which is different from the traditional distillation by boiling point difference separation principle, but by different substances molecular movement of the average free path difference to achieve separation.

Details Images
Technical datas
Model
GMD-80
GMD-100
GMD-150
GMD-200
Effective evaporation area (m2)
0.1
0.15
0.25
0.35
Barrel diameter (mm)
80
100
150
200
Feeding funnel volume(L)
1
2
3
5
Feed rate(Kg/hr)
0.5 ~ 5
0.75 ~ 7.5
1.25 ~12.5
1.75 ~`7.5
CBD Throughput at end of 8-10 hr.day (kg)
~8
~12
~20
~28
Motor power (W)
120
120
120
200
Maximum speed (rpm)
400
400
400
400
Distillate receiving flask (L)
1L
2l
5L
5L
Recycle receiving flask (L)
1L
2L
3L
5L
Operation Temperature
Up to 250 ℃
Voltage
220V Single phase (Customizable)
Vacuum
Batter than 10pa
Related products

Glass Type A

Evaporator Unit : standard with dewar-style cold trap
Main Heater: 5kW heating power, up to 300C
Pre-heater Heater/Chiller for Internal Condenser: 1.5kW heating power, up to 300C
Rotary Vane Pump: 6L/s gas displacement

Glass Type B

Evaporator Unit, Main Heater, Pre-heater Heater/Chiller, Rotary Vane Pump
Peristaltic Pump Module :for continuous inlet
Glass Valve Module for Continuous Outlet
Diffusion Pump:80L/s gas displacement,for higher vacuum
Hybrid Molecular Distillation Unit
Stainless Steel Molecular Distillation Unit
